Topp Pro TRX1000 – 340 Watt RMS Τελικός ενισχυτής

Features

2 channel power amplifier, 2 rack 19 units
Power bridge mode 8 ohms: 340W
Power stereo mode 4 ohms: 170Wx 2
Power stereo mode 8 ohms: 130Wx 2

Specs

Bridge Mode 8 Ohms

Continuous         340w
Program / Peak 500W / 680W

Stereo Mode 4 Ohms

Continuous         170W x 2
Program / Peak 250W x 2 / 340W x 2

Stereo Mode 8 Ohms

Continuous         130W x 2
Program / Peak 170W x 2 / 260W x 2

Dimension: (cm) 59.1 x 53.9 x 17.9
Weight: (kg) 17.1

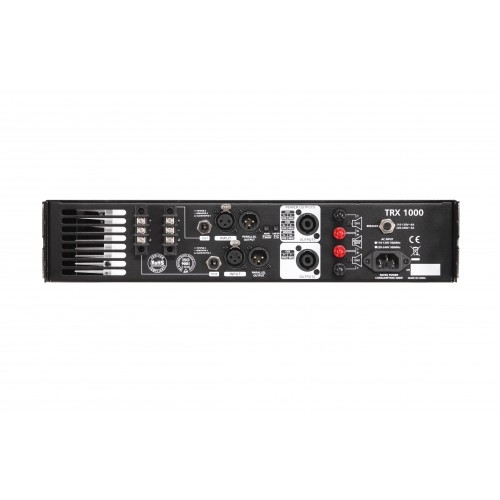

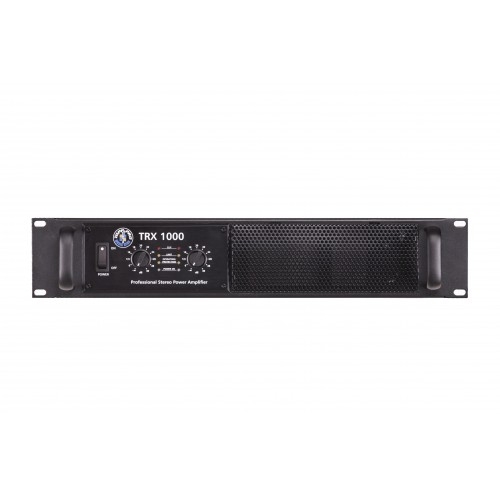

Distortion: (SMPTE-IM): <0.05% Frequency Response: 20Hz- 20kHz ±0.1/3dB Signal to Noise: 20Hz- 20kHz 102dB Voltage Gain: 40x (32dB) Input Sensitivity @ 4 ohms: 1Vrms Input clipping: 10 Vrms (+22dB) Input Impedance: 10 Kohms unbalanced, 20 Kohms balanced, 56 (36dB) Controls: Front: AC Switch, Ch1 - Ch2 Gain Knobs, Rear:Limiter, Bridge Selector Indicators: (1 per Channel) Power-On: Blue LED, Protection: Green LED, Limiter : Yellow LED, Clip: Red LED, Parallel-input: Yellow LED Connectors, each channel: Input: Terminal Block / Output: Screw-terminal Barrier Block Cooling: Continuously variable speed fan, front-to-rear air flow Load Protection: On / Off muting, overheat & short circuit protection Power Supply: 220-240V (110-120V) AC 50-60Hz
