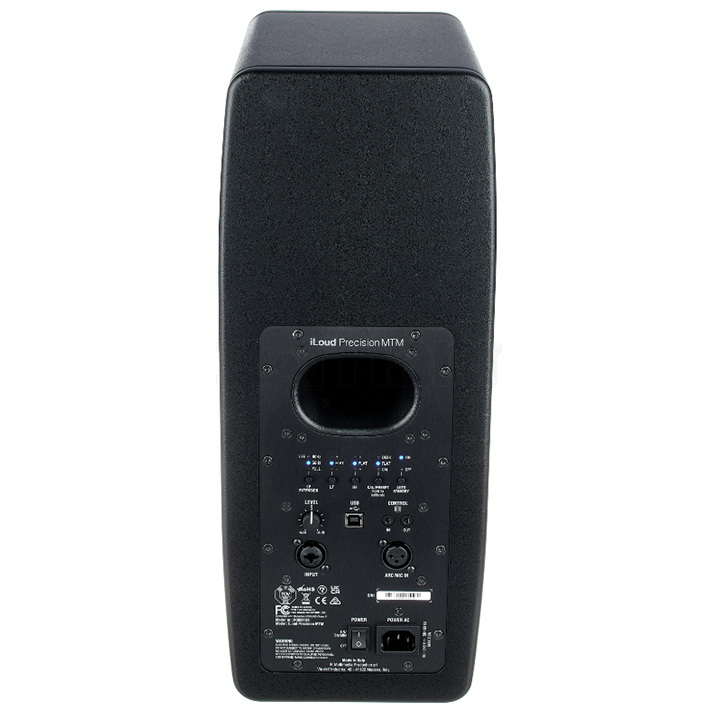

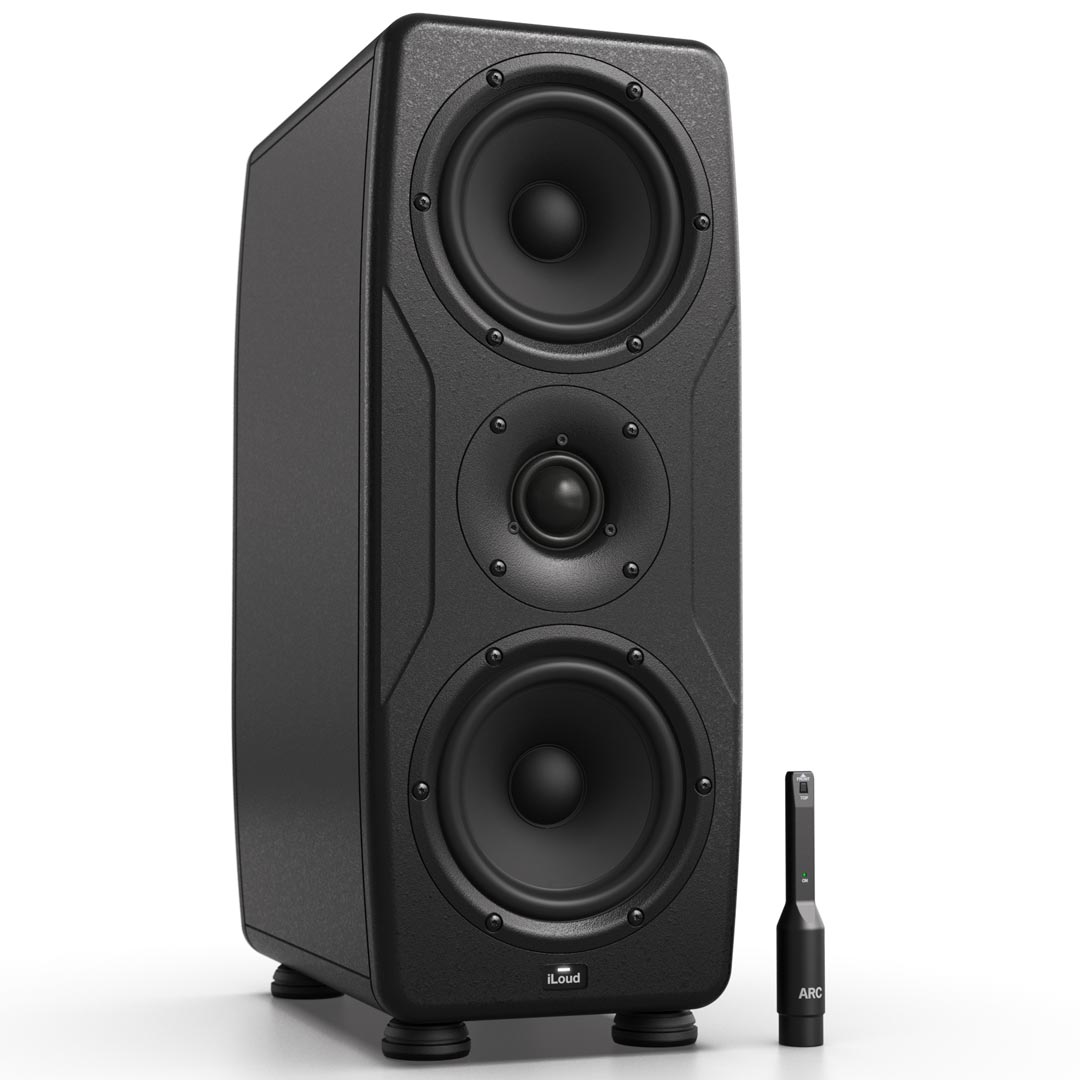

IK Multimedia iLoud Precision MTM

2×5″ ultralight coated paper mid-woofer
1.5″ high output, low distortion chambered textile dome tweeter
Audiophile, custom-designed Class-D power amplifiers
175 W total RMS power
Max SPL, peak, pair, music, 1 m: 119 dB
Complete DSP controlled system, 96 kHz sampling rate
45 Hz to 30 kHz frequency response +/- 1dB
37 Hz low frequency extension @-4 dB
Phase response: Coherent, 0/+20° max from 150 Hz up
Phase rotation at 100Hz (with high pass filter off): 40° max
Directivity (Vertical – all voices): +/-50°
Directivity (Vertical – Wide Dispersion mode): +65°/-65°
Continuous, long term SPL free field, 1 m distance, one speaker, fullband pink noise: 103.5 dB(A)
Peak SPL free field, 1 m distance, one speaker, fullband pink noise: 109.5 dB(A)
Peak SPL, half space, 1 m distance, one speaker, fullband pink noise: 111.5 dB(A)
Maximum peak SPL, per pair, 1 m distance, music program: 119.5 dB(A)
Crossover frequency: 1.9 kHz
Crossover type: 8th order, linear phase
LF Power amp (short term): 145 W
HF Power amp (short term): 30 W
Power amps distortion at nominal power: 0.005%
Total latency or TOF: 2.5 ms
Adjustable additional delay: 0-10 ms
High pass filter: off, 35, 50, 65, 80 Hz
LF contour: from -10 to +6 dB
Desk contour: from -10 to 0 dB
Mid contour: from -4 to +4 dB
HF contour: from -6 to +6 dB
Sentitivity: -4 dBu / 93 dBSPL
Input gain trim: +/-5 dB
Unit to unit consistency: +/-0.5 dB
Operating temperature (non condensing): from 0 to 35 °C
Coherent time response across the audio spectrum
High performance vented design
Built-in ARC room calibration
X-MONITOR technology
Remote control for X-MONITOR voice selection and measurement process control
X-MONITOR macOS and Windows control software
Handcrafted in Italy
Dimension and weight
(H x W x D): 442 mm/17.40″ x 177 mm/6.96″ x 223 mm/8.77″
9.9 kg/21.8 lbs.
Package includes
1 x iLoud Precision MTM monitor
Power cord
ARC Microphone
ARC Microphone clamp
USB-B to USB-A 2.5 m/8.2 ft. cable
1 x kit of 4 iLoud Isolation Pods
