Neutrik
-
-
NEUTRIK NE8FFX6-W ETHERCON CABLE CONNECTOR
etherCON CAT6A feedthrough coupler for cable extensions.– Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
– IP65 protected when mated with NE8MX6*
– Accommodates standard RJ45 plug
– Revolutionary small form factor
– The adapter offers the million-fold proven robust latch lock system
– The adapters are problem solvers for various intermating problems for professional and semi-professional applications€43,86€48,73NEUTRIK NE8FFX6-W ETHERCON CABLE CONNECTOR
€43,86€48,73Available in 1-3 days
-
NEUTRIK NA2FBNC 3 POLE XLR FEMALE-BNC SOCKET
3-pin XLR female to BNC socket adapter.€12,83€14,26NEUTRIK NA2FBNC 3 POLE XLR FEMALE-BNC SOCKET
€12,83€14,26Available in 1-3 days
-
NEUTRIK NA2MBNC 3 POLE XLR MALE-BNC SOCKET
3-pin XLR male to BNC socket adapter.€12,28€13,64NEUTRIK NA2MBNC 3 POLE XLR MALE-BNC SOCKET
€12,28€13,64Available in 1-3 days
-
NEUTRIK NAC3MX-W-TOP LOCKING MALE CABLE CONNECTOR
Locking male cable connector, screw terminalsThe powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
€8,70€9,67Available in 1-3 days
-
NEUTRIK NAC3FX-W-TOP
Locking female cable connector, screw terminalsThe powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
Heavy duty sealed power connector for harsh and demanding environment
Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
Uses high impact UV-resistant materials
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
Unique Neutrik cable retention
ENEC certified according to IEC 60320
UL498 certifiedTechnical Information
Electrical
Contact resistance ? 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Cable O.D. 6 – 12 mm
Lifetime > 5000 mating cycles
Wiresize 1.0 – 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 ?m Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type 4 (mated)
Temperature range -30 °C to +80 °C€8,93€9,92NEUTRIK NAC3FX-W-TOP
€8,93€9,92Available in 1-3 days
-
NEUTRIK NE8MX-B
RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.€3,57€3,97NEUTRIK NE8MX-B
€3,57€3,97Available in 1-3 days
-
NEUTRIK NE8MX
RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of nickel shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.€3,46€3,84NEUTRIK NE8MX
€3,46€3,84Available in 1-3 days
-
NEUTRIK NL4FRX 4 POLE RIGHT-ANGLE CABLE CONNECTOR,
4 pole right-angle cable connector, chuck type strain relief, dark grey bushing€6,92€7,69Available in more than 30 days
-
NEUTRIK NE8MX6-B ETHERCON CAT6A CABLE CONNECTOR SELF-TERMINATION
EtherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating.€16,74€18,60Available in 1-3 days
-
NEUTRIK NA2F-J-TX MINIATURE TRANSFORMER BALANCING ADAPTER
Miniature transformer balancing adapter, 3 pole XLR female – 1/4″ jack, ground lifted
-Audio transformer 1:1
– Impedance ratio: 200:200
– Source/load impedance in Ohm: 200/2k, (600/10k)
– Max. Input level (@ 50 Hz, 1% THD): -3 dBu€34,26€38,07Available in more than 30 days
-
NEUTRIK BSX-8 COLORED BUSHINGS FOR XLR TYPE X GREY
The Neutrik BSX-8 Bushing (Gray) is designed for etherCON series RJ45 cable connectors.€0,73€0,81Available in more than 30 days
-
NEUTRIK NE8MX6 ETHERCON CABLE CONNECTOR CAT6
etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating€14,84€16,49NEUTRIK NE8MX6 ETHERCON CABLE CONNECTOR CAT6
€14,84€16,49Available in more than 30 days
-
NEUTRIK NC10MD-LX-B 10 POLE MALE D-SIZE RECEPTACLE
10 pole male D-size receptacle, black chrome metal housing, duplex ground contact.
Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief.€19,20€21,33NEUTRIK NC10MD-LX-B 10 POLE MALE D-SIZE RECEPTACLE
€19,20€21,33Available in more than 30 days
-
NEUTRIK NC10FD-LX-B 8 + 2 POLE FEMALE D-SIZE RECEPTACLE
8 + 2 pole female D-size receptacle, black chrome metal housing, duplex ground contact.€23,44€26,04Available in more than 30 days
-
NEUTRIK NC10MRX-14-B 8 + 2 POLE MALE RIGHT-ANGLE CABLE CONNECTOR
Easy to assemble 8 + 2 pole right-angle male XLR cable connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief€25,22€28,02Available in more than 30 days
-
NEUTRIK NC10FRX-14-B 8 + 2 POLE FEMALE RIGHT-ANGLE CABLE CONNECTOR,
Easy to assemble 8 + 2 pole right-ange female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief€29,02€32,24Available in more than 30 days
-
NEUTRIK NC10MXX-14-B 8 + 2 POLE MALE CABLE CONNECTOR
Easy to assemble 8 + 2 pole male XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief€15,40€17,11NEUTRIK NC10MXX-14-B 8 + 2 POLE MALE CABLE CONNECTOR
€15,40€17,11Available in more than 30 days
-
NEUTRIK NC10FXX-14-B 8 + 2 POLE FEMALE CABLE CONNECTOR
Easy to assemble 8 + 2 pole female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief.€21,09€23,44Available in more than 30 days
-

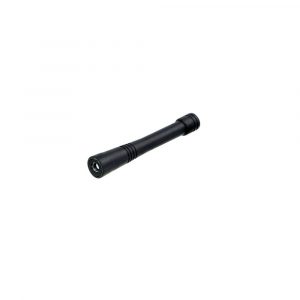

NEUTRIK NXPA-WIFI 2.4 GHz OMNI DIRECTIONAL ANTENNA FOR APP CONNECTION
2.4 GHz omni-directional antenna for app connection€0,00Available in more than 30 days
-

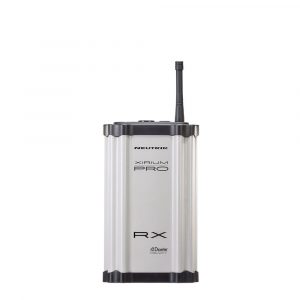

NEUTRIK NXP2RX-E RECEIVER RX Base Station
Wireless digital audio transmission tuner high fidelity to 5 GHz. The advantages should note the proprietary protocol (DiWA technology), the signal correction algorithm, the possibility repeater mode to cover longer distances, the possibility XROC and the control and regulation of the system by applying a tablet. Venture further features easy plug & play installation and operation and modular design for maximum flexibility. Sampling 48 kHz, with latency 3,6msec. two audio channels (in XROC mode 1). Can accept output modules Analog line, AES / EBU and Dante and repeater module.€0,00Available in more than 30 days
-

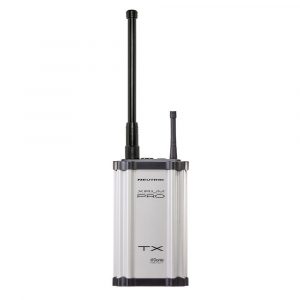

NEUTRIK NXP2TX-E TRANSMITTER TX Base Station
Wireless digital audio transmission transmitter High fidelity at 5 GHz. The advantages should note the proprietary protocol (DiWA technology), the signal correction algorithm, the possibility repeater mode to cover longer distances, the possibility XROC and the control and regulation of the system by applying a tablet. Venture further features easy plug & play installation and operation and modular design for maximum flexibility. Sampling 48 kHz, with latency 3,6msec. two audio channels (in XROC mode 1). It can accept input modules Analog line, AES / EBU and Dante€0,00Available in more than 30 days
-
-

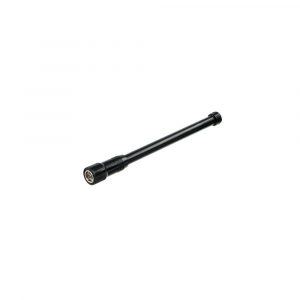

NEUTRIK NXPA-6-360-25 5 GHz ANTENNA 6dBi 360°H 25°V
Antenna 5GHz. Profit 6dBi cover horizontal and 360 ° vertical 25 °. Connect with N-connector for transmission units and repeater.€0,00Available in more than 30 days
Not compatible with NKUSB-* cables.
