The SB3 is a convertible Soundbar with bluetooth. This 2-piece Soundbar can be used as a single bar horizontally or as two towers vertically. You can position them vertically on the floor or on the furniture or installed on the wall. Horizontally you can place it on the table, furniture or even hang them on the wall. Quickly connect to your TV, or other devices via optical or AUX inputs, or easily stream your music via bluetooth. For an impactful and dynamic 2.1 experience, the S10 subwoofer can be easily paired.

VERSATILE USE

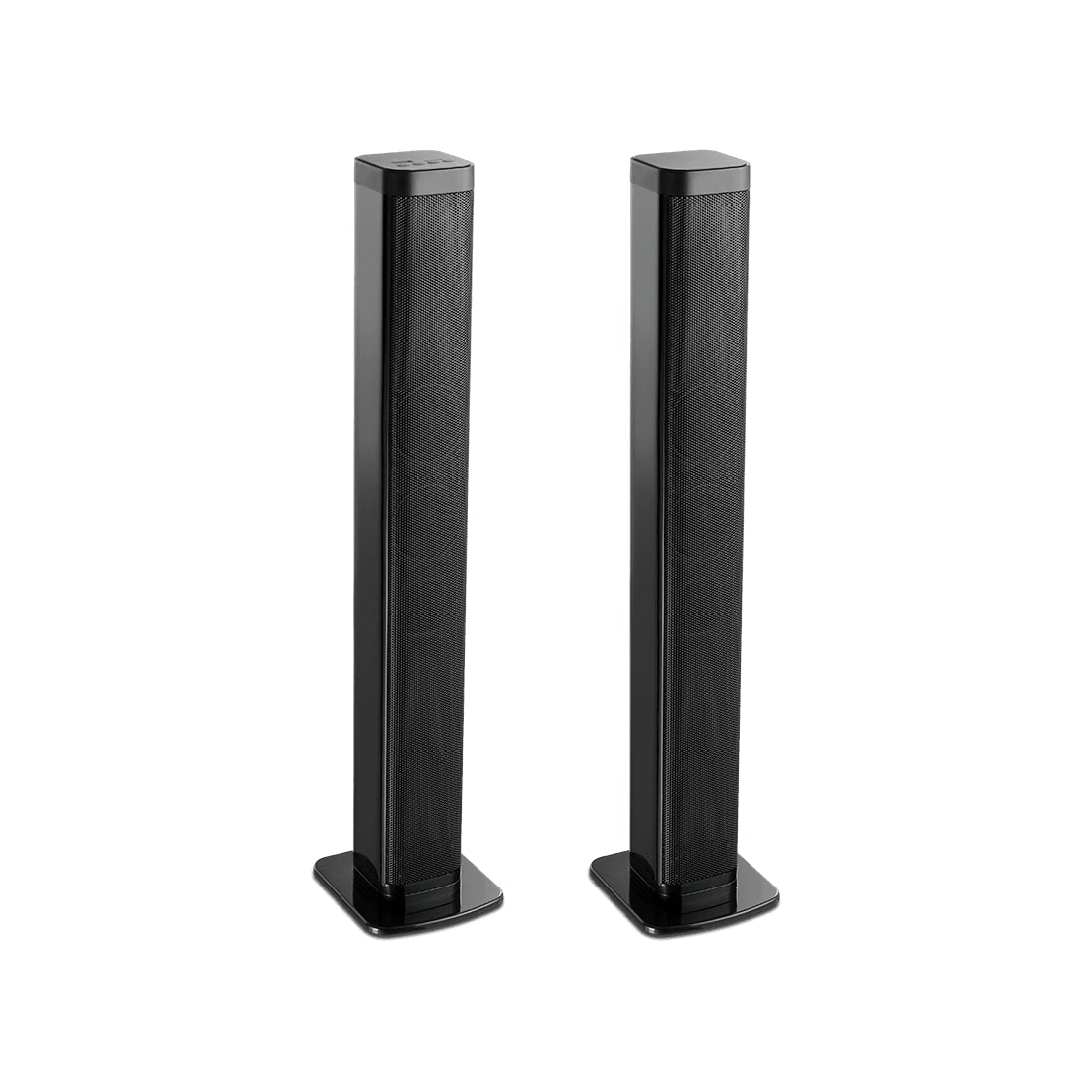

You can use your SB3 horizontally or divide it and use it in 2 vertical towers to fit your installation.

SUBWOOFER OUTPUT

Take the maximum from your SB3 extending the bass response of your sound system by connecting an external active subwoofer on the subwoofer output.

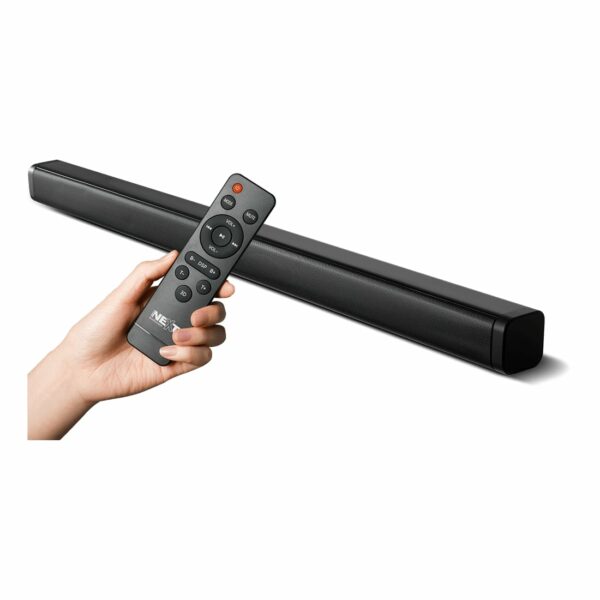

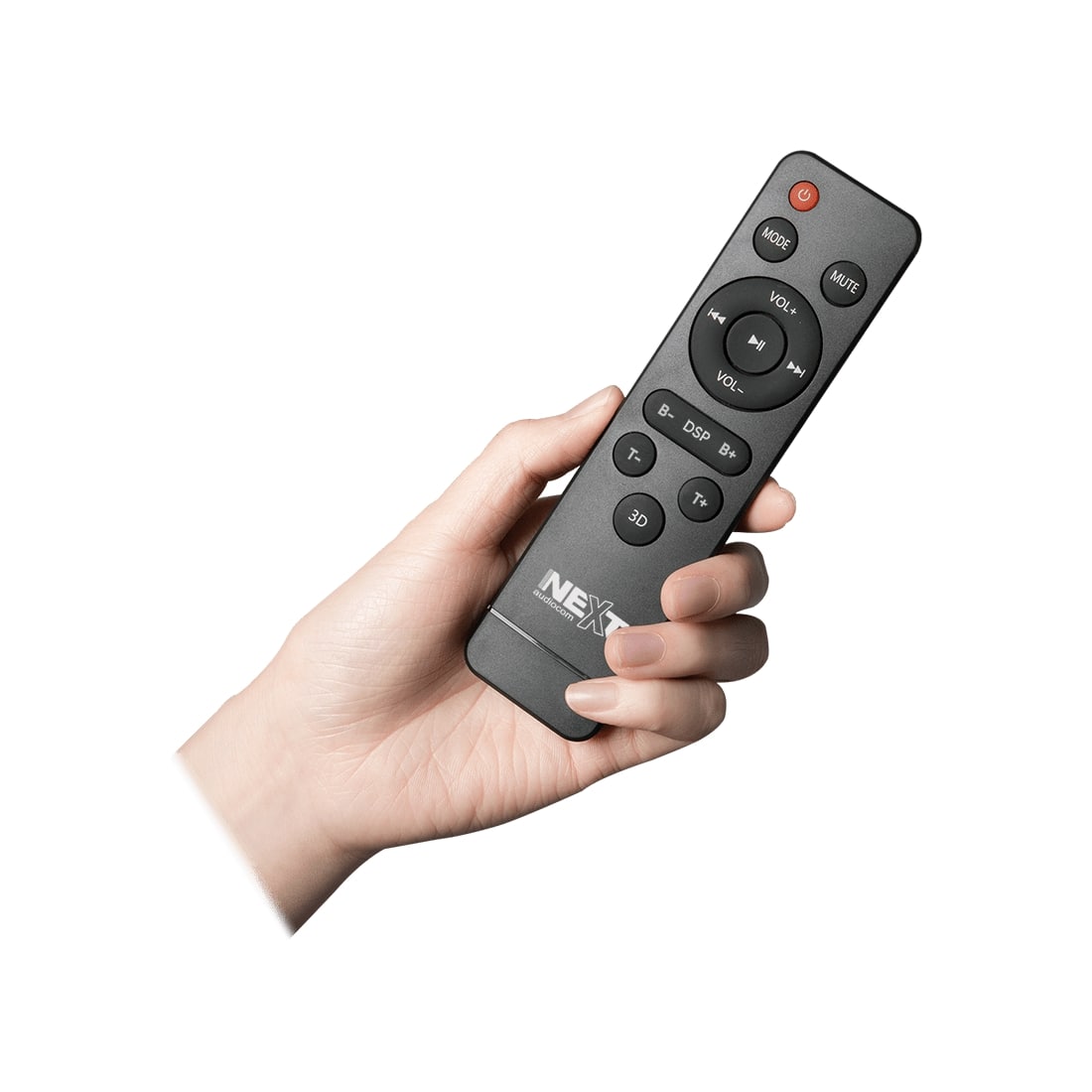

REMOTE CONTROL

With the remote control, it is possible to control your SB3 remotely and wirelessly. Is is also possible to select one from 10 available presets.

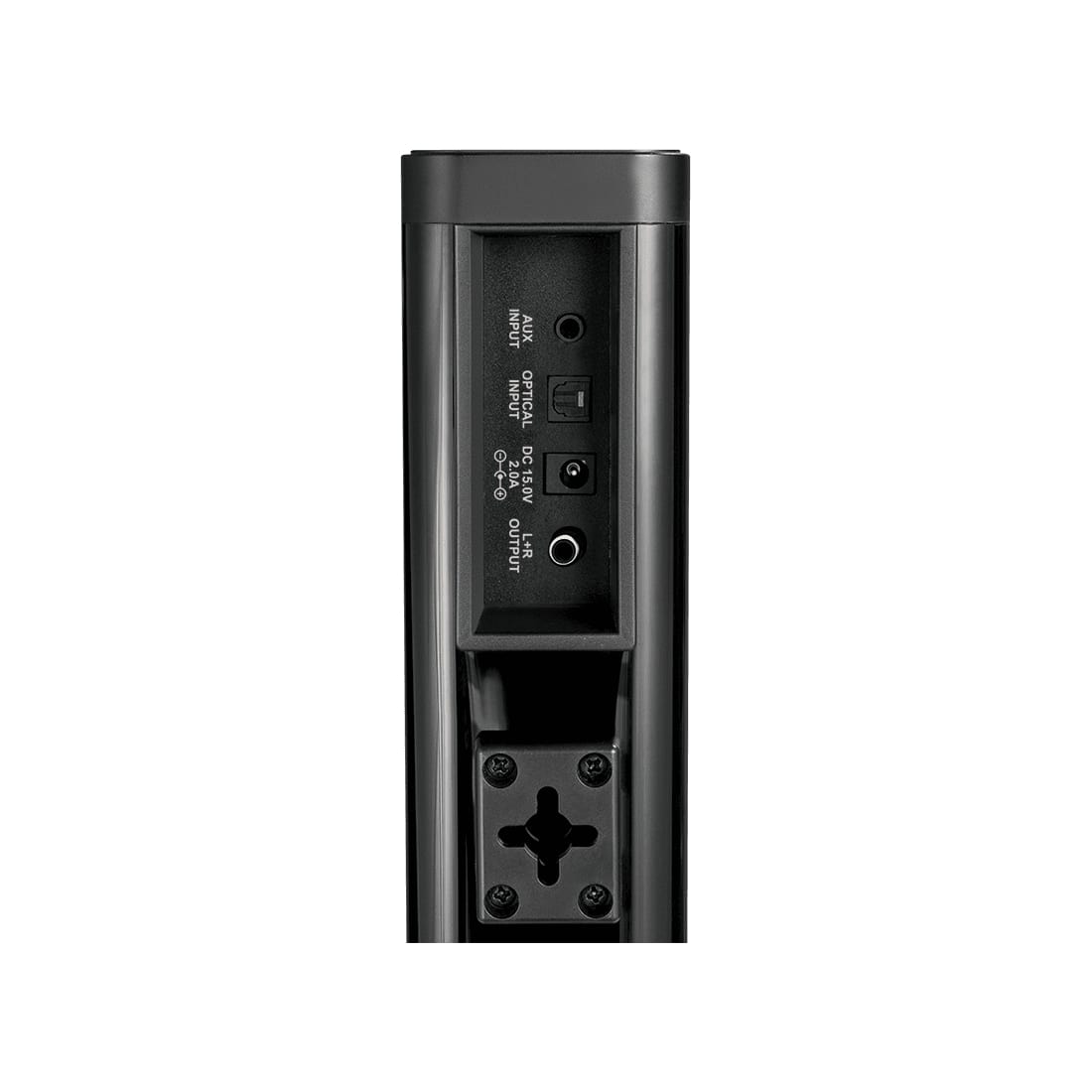

WIRING DIAGRAM

KEY FEATURES

2 Operation Modes

Use your speaker either horizontally or vertically, it is up to you!

Remote Control

Be the master of your system with the remote control. Wirelessly, have the power of control on your hands.

Subwoofer Output

Extend the bass response of your sound system by connecting an external active subwoofer via the subwoofer output.

AUX Input

You can use the AUX input to connect your Smartphone, Tablet, TV, CD Player or Laptop using a 3.5mm audio jack cable.

USB Player

With the incorporated USB Player, it is possible to insert your USB Flash Drive and play your audio files directly on the device.

Optical Input

Stream digital audio from your TV, TV Box, CD Player or Game Console to the speaker using an optical cable.

TECHNICAL SPECIFICATIONS

Product Type

Convertible Soundbar with Bluetooth

Frequency Response (-6dB)

100Hz – 18kHz

RMS Power

15W + 15W

DSP Presets

Rock, Pop, Jazz, Live, Club, Dance, Hall, Soft, Flat, Classical

Wireless Connection System

Bluetooth v5.0

Wireless Range

>10m (32.8ft)

Full-Range Driver

4 x 2″ Full-Range Loudspeaker

Audio Signal Inputs

Stereo Bluetooth | AUX | Optical | USB | Micro SD Card

Input Connectors

3.5mm Stereo Jack | Optical Cable | USB | Micro SD Slot

Audio Signal Outputs

Subwoofer or Other System Output (Unfiltered, Full-Range)

Output Connectors

1 x RCA

Amplifier Technology

Class D Amplifier with DSP

Power Input

Power Supply: AC 100V – 240V / 50Hz-60Hz | DC 15V – 2A

Power Consumption

30W

Special Features

Soundbar Convertible into Stereo Sound System (2 Vertical Systems)

Fittings

Plastic Feet | Multi-Directional Hanging Holes

IP Rating

Indoor Use

Dimensions (WxHxD)

980 x 55 x 60mm (38.6″ x 2.2″ x 2.4″) [Soundbar] | 55 x 490 x 60mm (2.2″ x 19.3″ x 2.4″) [Vertical System]

Fixation

Picture Frame Hanging Type

Net Weight

1.6kg (3.5lb)

Shipping Weight

2.3kg (5lb)
