ALBALA EOP0001C01 ELECTRICAL PORT DUAL 3G/HD/SD-SDI OPTICAL TO/FROM
€0,00

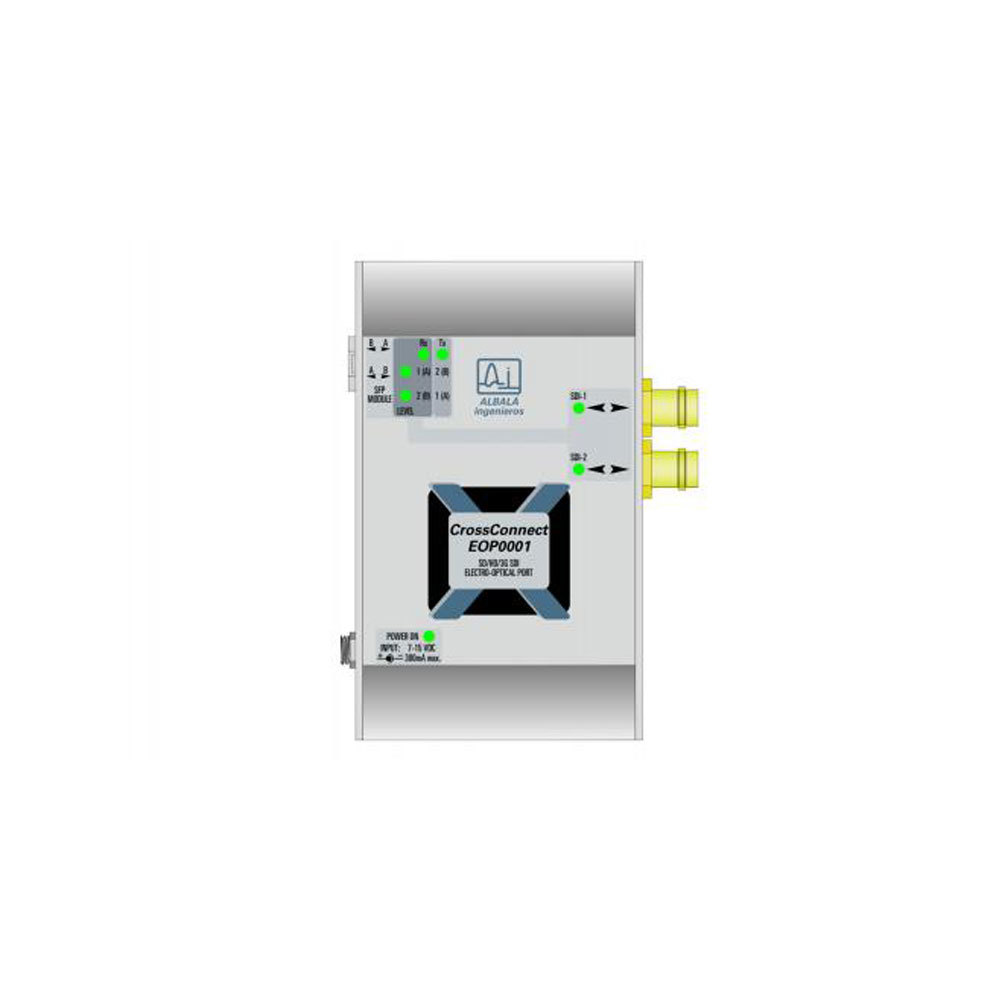

The EOP0001C01 is a dual digital video signal converter for optical-to-electrical format conversion and vice versa.
The EOP0001C01 operates with 270 Mbit/s (SD-SDI and DVB-ASI), 1.5 Gbit/s (HD-SDI) and 3 Gbit/s (3G-SDI) signals.
The EOP0001C01 provides one cage for an optical SFP module that can function as a dual transmitter or dual receiver. Two BNC connectors are also provided that can function either as inputs or outputs, depending upon how the unit will be used.
If the SFP module inserted is a dual optical transmitter then the BNC connectors are configured as inputs. If the SFP module inserted is a dual receiver, then the BNC connectors are configured as outputs.
The signal received is always re-synchronized for delivery to the outputs.
The SFP modules are sold separately and also function as dual transmitters or receivers. Albal? Ingenieros sells the MSFPTP01 transmitter and the MSFPRP01 receiver, both of which are 100% compatible with the EOP0001C01.
The EOP0001C01 operates with 270 Mbit/s (SD-SDI and DVB-ASI), 1.5 Gbit/s (HD-SDI) and 3 Gbit/s (3G-SDI) signals.
The EOP0001C01 provides one cage for an optical SFP module that can function as a dual transmitter or dual receiver. Two BNC connectors are also provided that can function either as inputs or outputs, depending upon how the unit will be used.
If the SFP module inserted is a dual optical transmitter then the BNC connectors are configured as inputs. If the SFP module inserted is a dual receiver, then the BNC connectors are configured as outputs.
The signal received is always re-synchronized for delivery to the outputs.
The SFP modules are sold separately and also function as dual transmitters or receivers. Albal? Ingenieros sells the MSFPTP01 transmitter and the MSFPRP01 receiver, both of which are 100% compatible with the EOP0001C01.
