Τhe Shoulder-Mount Kit designed for the Blackmagic Design URSA Mini provides a shoulder mount for you to comfortably rest the camera on your shoulder for long shooting sessions. Integrated into the shoulder mount are a quick-release compatible with VCT wedge plates, 15mm lightweight rod clamps, and rosettes on either side for mounting handles and other accessories. Also included in the kit is a top handle for low-mode shooting and for carrying the camera when not in use.

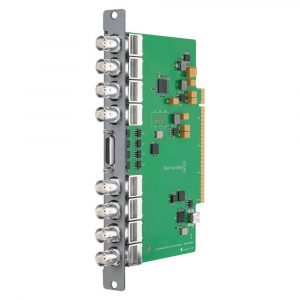

The Blackmagic Design Universal Videohub SDI Interface includes 4 SDI inputs and 4 SDI outputs, plus 4 deck control. In addition, it comes with full re-clocking and auto switching SD, HD, and 3 Gb/s SDI (serial digital interface). The SDI interface connects all devices in a facility by covering long distances up to 300′ (91.4m). It uses 10-bit video quantizing that allows 1024 video levels, and eliminates banding and contouring problems in high quality video.

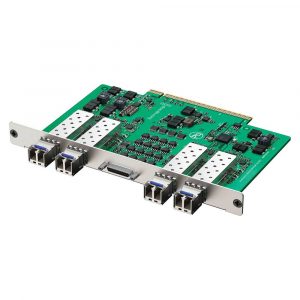

The Universal Videohub Optical Fiber Interface is a hot-swappable card module designed for use with the Videohub 72 and 288 rack frame routing switchers. It includes 4 inputs and outputs as well as a port for remote control of up to 4 decks. Other features include built-in SDI re-clocking, SD/HD/3Gbps auto-switching, 1310nm laser drivers, and receivers with a 25km range at 3Gbps.

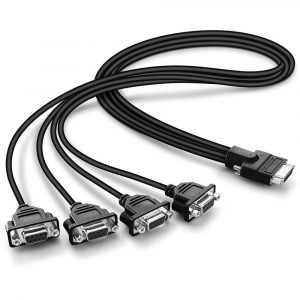

The Blackmagic Design Remote Cable for Universal Videohubs provides remote control functionality by adding four independent remote control ports to either BNC SDI or optical fiber SDI interfaces.

The Blackmagic Design Universal Videohub 288 Crosspoint is a hot-pluggable card module designed for use in the Videohub 288 rack frame. It supports up to 288 x 288 SDI and deck control, ethernet and serial router control, genlock and alarm indicators.

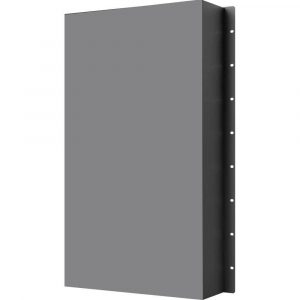

The Blackmagic Design Universal Videohub 288 is a customizable rack frame that lets you build the ultimate 3G/HD/SD deck control routing switcher. At 18 rack units high and only 6″ deep, the Videohub 288 is designed to accept a mix of SDI interface, crosspoint, and power supply cards, upgradable as your application demands. Add up to 72 BNC SDI or optical fiber SDI interfaces along with a single 72 x 72 or dual 288 x 288 crosspoints, and up to 2 power cards. Other features include a removable fan tray, full auto standard detection, re-clocking, 3Gb/s SDI support, 288 x 288 deck control, and ethernet/serial control.

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering multiple audio output connections and an Ethernet control and PoE port, the Teranex Mini SDI to Audio 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect any SDI signal in up to Full 4K DCI 4096x2160p resolution via a 12G-SDI input, and de-embed audio from the signal and output it via a diverse set of audio connections. Output two channels of analog audio or up to four channels of AES/EBU digital audio via full-size, professional balanced XLR ports, two channels of unbalanced analog line-level audio via RCA connectors, or optical S/PDIF audio via a TOSLINK output. Connect the audio signal to a wide range of audio equipment, such as mixers, decks, and audio monitors. There’s also a 12G-SDI output for routing the original signal. Route 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you’ll be able to run 4096x2160p signals for over 250 ft.

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini SDI to Analog 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Down-convert up to a 12G-SDI Full 4K DCI 4096x2160p signal to analog so you can connect high-resolution sources to component video equipment in HD or SD. You can also output the audio of the SDI signal via full-size XLR outputs that are switchable between balanced analog and AES/EBU digital audio.
