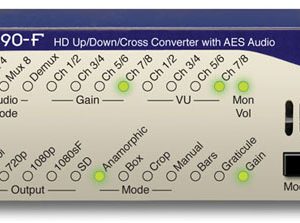

BrightEye 90-F is a versatile up/down/cross converter or aspect ratio converter for use with analog and digital video signals with the addition of an optical output. Optical connectivity allows for long cable runs between buildings or in mobile applications. Simply set the BrightEye 90-F to output your facility’s preferred HD or SD standard. The BrightEye 90-F will accommodate whatever input you connect analog composite, SD SDI or HD SDI. After setting the output standard, BrightEye 90-F automatically converts the selected input to the correct standard for your facility. BrightEye 90-F will upconvert, downconvert, cross convert, or act as an ARC, as needed. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 90-F. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

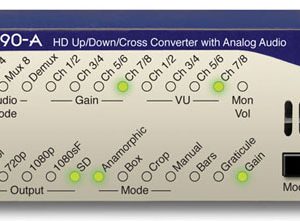

BrightEye 90-A is a versatile up/down/cross converter or aspect ratio converter for use with analog and digital video signals. Simply set the BrightEye 90-A to output your facility’s preferred HD or SD standard. The BrightEye 90-A will accommodate whatever input you connect – analog composite, SD SDI or HD SDI. After setting the output standard, BrightEye 90-A automatically converts the selected input to the correct standard for your facility. BrightEye 90-A will upconvert, downconvert, cross convert, or act as an ARC, as needed. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 90-A. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

Assembled, 2 channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

– TRANSMIT 8 CHANNEL BALANCED AUDIO SIGNAL
8 Channel Model: FTA/FRA-108, 8 channel balanced audio signal transmission
– THE SOLUTION OF SENDING A SOUND SOURCE IN LONG DISTANCE
Optical Cable Communication [FTA/FRA-108S] : Sending a signal in long distance (maximum 15km)
– HIGH QUALITY AUDIO SIGNAL
It sends the digital signal converted to 24Bit, 48kHz to provide the high quality audio signal
(higher than S/N 90dB, less than THD 0.01%)
– AC/DC SUPPORTS
It responses to the field conditions with supporting AC and DC power input terminals
– INPUT SENSITIVITY CONTROL FUNCTION THROUGH PAD SWITCHES
If it is clipped due to high input audio signal level, push the PAD switch to decrease the input signal in 10dB
– INPUT SIGNAL DISPLAY
Detects the audio signal and clip approved to each channel and display on the front panel.
– RS-232/RS-422/CONTACT POINT DATA RECEIVING/SENDING (OPTION MODULE)
The optional module (CT-100M/CR-100M) can be installed to make a possible to receive and send a RS-232,
RS-422 and 8 channel contact point data.

– Pure Sound – Data transmission in studio quality
The XIRIUM transmits uncompressed data with a sampling rate of 48 kHz and with a resolution of 24 bit within the 5 GHz band. THD (total harmonic distortion) < 0.01% @ 1 kHz, SNR (signal-to-noise ratio) (dynamic) > 105 dB @ 1 kHz, latency 3 msec. This means that audio signals are transferred with a delay of 3 msec and uncompressed in studio quality.
– Robust – Secure and noiseless operation
Transmission and receiving protocol specifically developed for DIWA, FEC (forward error correction) and concealment algorithms correct any irregularities, antennas ? diversity.
– Plug and Play – Easy installation and operation
Operation within the 5 GHz band, no licenses required, automatic frequency management, memory functions.
– Multifunctional use – Upgrade to your needs
DIWA not only supports more than one transmission channel, but enables the set-up of multichannel networks (at present up to 8 audio channels, in broadcast mode – 24 lines).
– Bidirectional – Send and receive
Networks based on the DIWA technology can send and receive audio signals. Thus, both signal sources (instruments, microphones etc.) and signal receivers (loudspeakers, mixers etc.) can be integrated in a digital wireless system.

– Pure Sound – Data transmission in studio quality
The XIRIUM transmits uncompressed data with a sampling rate of 48 kHz and with a resolution of 24 bit within the 5 GHz band. THD (total harmonic distortion) < 0.01% @ 1 kHz, SNR (signal-to-noise ratio) (dynamic) > 105 dB @ 1 kHz, latency 3 msec. This means that audio signals are transferred with a delay of 3 msec and uncompressed in studio quality.
– Robust – Secure and noiseless operation
Transmission and receiving protocol specifically developed for DIWA, FEC (forward error correction) and concealment algorithms correct any irregularities, antennas ? diversity.
– Plug and Play – Easy installation and operation
Operation within the 5 GHz band, no licenses required, automatic frequency management, memory functions.
– Multifunctional use – Upgrade to your needs
DIWA not only supports more than one transmission channel, but enables the set-up of multichannel networks (at present up to 8 audio channels, in broadcast mode – 24 lines).
– Bidirectional – Send and receive
Networks based on the DIWA technology can send and receive audio signals. Thus, both signal sources (instruments, microphones etc.) and signal receivers (loudspeakers, mixers etc.) can be integrated in a digital wireless system.
