ENSEMBLE DESIGN 9455 AVENUE 3G / HD/ SD SDI CLEAN AND QUIET PROTECTION
The 9455 module is a clean and quiet protection switch for critical broadcast and satellite feeds. It switches cleanly between asynchronous sources which means it can be used live to air. The module has a full video frame synchronizer, rather than a line delay, ensuring perfect alignment of mis-timed and non-synchronous SDI sources.€0,00Available in more than 30 days
-

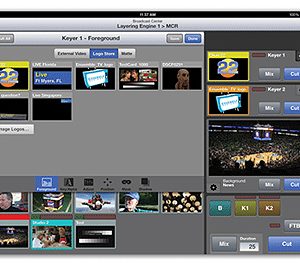

ENSEMBLE DESIGN 9425-XK AVENUE SOFTWARE KEY FOR THE 9425 – PROVIDES 3RD
DSK and EAS Inserter Software Key Option€0,00Available in more than 30 days
-

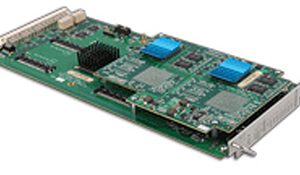

ENSEMBLE DESIGN 9425 AVENUE LAYERING ENGINE FIELD UPGRADE FOR THOSE WHO
Layering Engine field upgrade for those who already own a 9430€0,00Available in more than 30 days
-

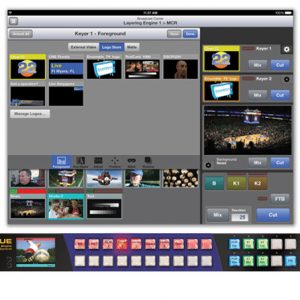

ENSEMBLE DESIGN P9425 AVENUE LAYERING ENGINE (INCLUDES 9430)
Use Ensemble’s Avenue Layering Engine for broadcast, live venues and presentation. With two, independent linear keyers, program/preset background transitions, and audio mixing and breakaway, it’s an agile and flexible solution to combining audio and video content. Inputs can be driven by SDI signals from cameras, remote feeds, character generators, graphic and stillstore systems and video servers. The full range of SDI signals from SD to HD and 3G formats are supported. Realtime processing and low latency make it easy to integrate ? even in complex signal chains.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 9400 AVE AVENUE SYNC PULSE GENERATOR AND TEST SIGNAL GENERA
The 9400 3G/HD/SD Sync Generator and Test Signal Generator is a stable timing source that is perfect for local reference generation in broadcast, remote trucks and post. HD SDI, SD SDI, analog composite, Tri-Level Sync, timecode, AES audio and analog audio reference outputs are generated.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 9400-GPS AVENUE INTEGRATED GPS FOR 9400
Avenue Integrated GPS for 9400€0,00Available in more than 30 days
-

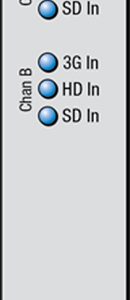

ENSEMBLE DESIGN 9125 AVENUE 3G / HD / SD / ASI DUAL RECLOCKING DISTRIB
The Avenue 9125 module is a two channel video distribution amplifier that handles 3 Gb/s and 1.5 Gb/s high definition, standard definition and ASI video signals. It automatically detects and operates at 270 Mb/s for Standard Definition (525 or 625) signals and at 1.5 Gb/s or 3 Gb/s for High Definition signals. It also can be used with DVB-ASI signals. The 9125 has automatic cable equalization and reclocking. The module can be used in either the 3RU or 1RU Avenue frame.
Input signal presence and bit rate can be monitored through the Avenue Control System and it is also indicated by LED indicators on the front edge of the module. On loss of signal, the 9125 can generate an alarm that is monitored through Avenue PC.€0,00Available in more than 30 days
-

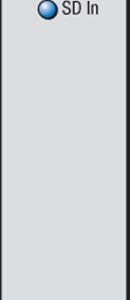

ENSEMBLE DESIGN 9110 AVENUE 3G / HD / SD / ASI RECLOCKING DISTRIBUTION
The Avenue 9110 module is multi-rate serial digital distribution amplifier with automatic cable equalization and reclocking. It automatically detects and operates at 270 Mb/s for Standard Definition (525 or 625) signals and at 1.5 Gb/s or 3 Gb/s for High Definition signals. It also can be used with DVB-ASI signals. The module has one input and eight outputs. The module can be used in either the 3RU or 1RU Avenue frame.
Input signal presence and bit rate can be monitored through the Avenue Control System and it is also indicated by LED indicators on the front edge of the module. On loss of signal, the 9110 can generate an alarm that is monitored through Avenue PC.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7940 AVENUE SD ASPECT RATIO CONVERTER
The 7940 is an aspect ratio converter for standard definition signals. Resizing and Repositioning includes choices for: Letterbox, Anamorphic, Crop and Zoom. Proc amp controls are provided in the form of Video, Chroma and Pedestal.The 7940 can be configured locally or controlled and configured remotely with Avenue Touch Screens, Express Panels, or Avenue PC Software. Alarm generation, configurable user levels, module lock out, and customizable menus are just some of the tools included in the Avenue control system.
€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7930 AVENUE HD CROSS CONVERTER
The 7930 module provides cross conversion between HD 1.5 Gb/s formats, processing all popular variations of 1080 and 720, making it simple for every facility to ingest any type of HD signal.
All popular variations of 720p, 1080i, 1080sF and 1080p are supported. The 7930 converts between any HD signals within the 59.94/23.98/29.97 family, within the 50/25 fps family, or within the 60/30 fps family. When converting from 59.94 to 23.98 formats, the 3:2 cadence of any existing film material in the input is automatically detected and backed out.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7925 DUAL HD DOWNCONVERTER WITH ANALOG AUDIO OUT
The 7925 module is a two-channel, dual downconverter with HD and SD outputs that can be used in the most demanding broadcast applications. With two downconverters on one module, the 7925 provides high efficiency with excellent picture quality. The downconverted outputs are timeable with respect to the reference input and can feed production switchers and routers.
The 7925 accepts 720p, 1080i, 1080sF and 1080p inputs that are synchronous or asynchronous. If an SD SDI input is received, SD is passed to the output.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7920 AVENUE HD UP/CROSS CONVERTER
The 7920 module has an HD SDI input and four outputs that can be configured as two SDI and two composite outputs, or four SDI outputs. Whether it’s providing digital feeds to production switchers and routers or analog monitoring, the 7920 is right at home.
The Downconversion process includes Picture Detail Enhancement and Anti-Alias Filtering, which make for a pristine SD output. The Aspect Ratio Conversion process offers Resizing and Repositioning with choices for: Letterbox, Anamorphic, Crop and Zoom. The 7920 automatically adjusts from HD to SD color space and gamma. Proc amp controls are provided in the form of Video, Chroma and Pedestal.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7910 AVENUE HD UP/CROSS CONVERTER
The 7910 module accepts an SD or HD SDI input and has four HD SDI outputs. Excellent for on-air use, the 7910 is equally at home in an HD island, in a signal ingest installation, or in a production application. Since the 7910 functions as either an Upconverter or Cross Converter, it’s useful on the output of a server when material may switch between HD programming and SD commercials. It’s also convenient in a dual-rate master control environment.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7900 AVENUE HD UP / DOWN / CROSS CONVERTER
he 7900 is a flexible, configurable Up and Downconverter for use in broadcast and post. It can process SD (Standard Definition) signals into HD, downconvert HD signals into standard definition, and perform Format and Aspect Ratio Conversion on both SD and HD signals. The 7900 and one of the optional audio sub modules together only occupy one slot in an Avenue frame ? now that’s efficient use of space. New Feature, Side Panel Keying€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7660 AVENUE HD/SD AES OR ANALOG AUDIO EMBEDDER/DISEMBED
The 7660 module is an eight-channel audio embedder or disembedder for 1.5 high definition or 270 Mb/s standard definition signals. Four AES ports automatically configure as inputs or outputs depending on if the module is configured as mux or demux. Additionally, four channels of analog audio are supported.€0,00Available in more than 30 days
-
ENSEMBLE DESIGN 7635 AVENUE DOLBY AC3 ENCODER SUB MODULE
The 7635 Encoder sub module option supports Dolby D and AC-3 signals. The 7635 fits onto Avenue modules that benefit from comprehensive audio handling. In addition to the hardware sub module, a unique software key is provided for activation.
The 7635 encoder is fed from selected outputs of the main module’s channel mixer and shuffler. The resulting encoded bitstream can be output both on an AES output and embedded into the SDI output.€0,00Available in more than 30 days
